Tip of the day: Going quickly to an item in the Entity Model Diagram
3 April, 2013 Leave a comment
After a conversation recently about how difficult it was to find stuff in the EDMX diagram because it can often be a right pigs breakfast, I stumbled across this today.
In Visual Studio there is a Model Browser that is available when viewing the diagram. It appears in the same space as the solution explorer. If you don’t see it in the tab list you can add it by going to View–>Other Windows–>Entity Data Model Browser. Like this:

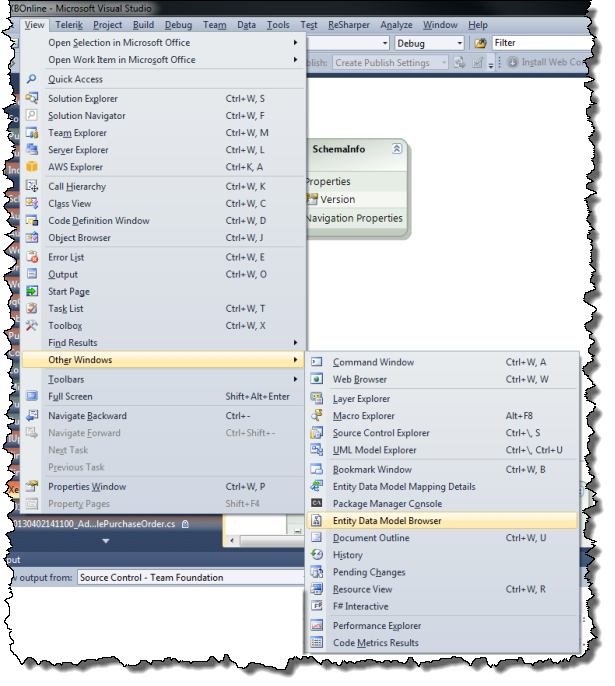

Menu to open Entity Data Model Browser
Once there, you can open the tree to get the item you want much more easily that finding in on the diagram. Open entity types to see a list:

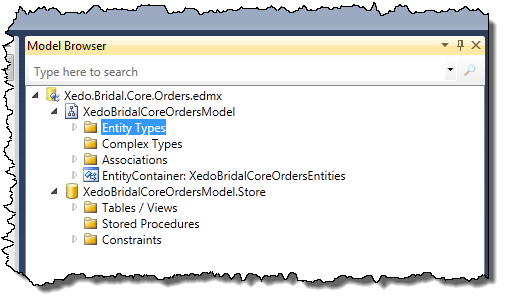

The model browser window
Right-click the entity you want to move the diagram to and select “Show in Designer”

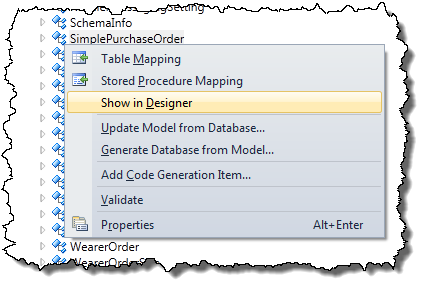

Show in Designer
The designer will shift to the location of the table and put it in the centre of the window for you. It will also select the table.
It may be a really simple thing, but I wish I’d discovered it sooner.
