Getting Started with AngularJS – Bundling the files

When you are building AngularJS apps you will probably want to store all your various controllers, directives, filters, etc. into different files to keep it all nicely separated and easy to manage. However, putting script blocks to all those files in your HTML is not efficient in the least. Not only do you have several round-trips to the server, the browser will be downloading a lot of code that is designed to be readable and maintainable, potentially with lots of additional whitespace and comments.

If the back end of your application is using .NET then you can bundle together CSS and Javascript files to make them more optimised.

For example, I have a small AngularJS prototype application that uses bundling so that, when it is run with the optimisations turned on, it will need less files and more compact javascript and CSS. The method that creates these bundles looks like this:

public static void RegisterBundles(BundleCollection bundles)
{
    bundles.Add(new StyleBundle("~/Content/base-styles.css")
        .Include("~/Content/bootstrap.css")
        .Include("~/Content/angular-ui.css")
        .Include("~/Content/angularCatalogue.css"));

    bundles.Add(new ScriptBundle("~/Scripts/base-frameworks.js")
        .Include("~/Scripts/jquery-{version}.js")
        .Include("~/Scripts/angular.js")
        .Include("~/Scripts/angular-resource.js")
        .Include("~/Scripts/angular-ui.js")
        .Include("~/Scripts/bootstrap.js"));

    bundles.Add(new ScriptBundle("~/Scripts/angular-catalogue.js")
    // Configure the Angular Application
      .Include("~/ngapp/app.js")

    // Filters
      .Include("~/ngapp/filters/idFilter.js")
      .Include("~/ngapp/filters/allBut.js")

    // The services
      .Include("~/ngapp/Services/colourService.js")
      .Include("~/ngapp/Services/brandService.js")
      .Include("~/ngapp/Services/productTypeService.js")
      .Include("~/ngapp/Services/productService.js")
      .Include("~/ngapp/Services/sizeService.js")

  // Directives
      .Include("~/ngapp/Directives/userFilter.js")
      .Include("~/ngapp/Directives/productDetailsDirective.js")

  // Controllers
      .Include("~/ngapp/Controllers/productSearchController.js")
      .Include("~/ngapp/Controllers/productDetailController.js")
      .Include("~/ngapp/Controllers/editProductController.js"));
}

This method is called from the Application_Start() method in global.asax.cs.

What this does is set up a number of bundles. In this case three bundles are set up. One for the CSS, and two for javascript (one is a set of standard third party libraries, the other is the angularJS application itself).

In the layout or view you can then reference these bundles using the path passed in to the constructor. Like this:

<html>
  <head>
    <!-- Other bits go here -->
    @Styles.Render("~/Content/base-styles.css")
  </head>
  <body>
    @RenderBody()
    @Scripts.Render("~/Scripts/base-frameworks.js")
    @Scripts.Render("~/Scripts/angular-catalogue.js")
  </body>
</html>

Remember to use the tilde notation just like in the code that defines the bundles.

When the optimisations are turned off the scripts will render as a script block per include. When the optimisations are turned on then it outputs one script block. When the server receives a request for that script it resolves the name to match the bundle, it then sends back an amalgamated and minified  version of that script file. This then loads much faster on the client as there are less roundtrips to the server and takes much less bandwidth.

Here’s what the two scenarios look like:

Optimisations turned off

This is what the two @Script.Render() blocks at the end of the HTML look like:

<script src="/Scripts/jquery-1.9.1.js"></script>
<script src="/Scripts/angular.js"></script>
<script src="/Scripts/angular-resource.js"></script>
<script src="/Scripts/angular-ui.js"></script>
<script src="/Scripts/bootstrap.js"></script>

<script src="/ngapp/app.js"></script>
<script src="/ngapp/filters/idFilter.js"></script>
<script src="/ngapp/filters/allBut.js"></script>
<script src="/ngapp/Services/colourService.js"></script>
<script src="/ngapp/Services/brandService.js"></script>
<script src="/ngapp/Services/productTypeService.js"></script>
<script src="/ngapp/Services/productService.js"></script>
<script src="/ngapp/Services/sizeService.js"></script>
<script src="/ngapp/Directives/userFilter.js"></script>
<script src="/ngapp/Directives/productDetailsDirective.js"></script>
<script src="/ngapp/Controllers/productSearchController.js"></script>
<script src="/ngapp/Controllers/productDetailController.js"></script>
<script src="/ngapp/Controllers/editProductController.js"></script>

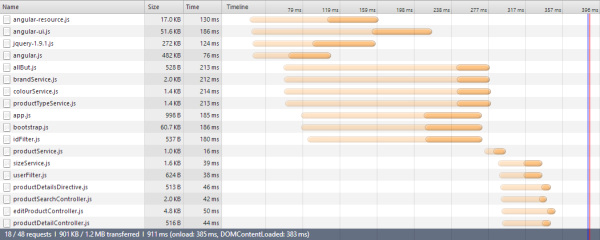

And when this is rendered in the browser, the following calls are made.

There are 18 requests in the above example. 901kb is transferred to the browser and it took 911ms to complete loading everything (the above does not show images, css or ajax calls that are also downloaded as part of the page)

Optimisations turned on

Now, compare the above to this representation of the same section of the page:

<script src="/Scripts/base-frameworks.js?v=oHeDdLNj8HfLhlxvF-JO29sOQaQAldq0rEKGzugpqe01"></script>
<script src="/Scripts/angular-catalogue.js?v=fF1y8sFMbNn8d7ARr-ft_HBP_vPDpBfWVNTMCseNPC81"></script>

And when rendered in the browser, it makes the following requests:

There are now just two requests, one for the base-framework bundle, and one for the angular-catalogue (our application code) bundle.

Because the bundling process minifies the files the amount of data transferred is much smaller too, in this case 223kb (a saving of 678kb or roughly 75%). For established frameworks that ship with a *.min.js version the bundling framework will use that convention and use the existing minified file. If it can’t find one it will minify the file for you.

And because there is less data to transfer and less network round-trips to wait for the time to fully load the page has been reduced  to 618ms (a saving of 293ms or roughly ⅔ of the time of the previous request).

More information

There is a lot more to bundling than I’ve mentioned here. For a more in depth view of bundling read Scott Guthrie’s blog on Bundling and Minification Support.

Setting up a website that uses multiple projects

I’m looking at the possibility of restructuring some of our applications to unify them under one brand and one site. Currently our applications are on different sub-domains of our main domain and we’d like to bring all that under one roof so our application can be something like https://app.example.com and that’s it.

To that end I’m looking at setting up a central project (a portal, if you like) that the user enters and logs into and from there they can move off into the various applications depending on what they want to do. Each of the application would sit in a virtual directory off the main application.

Basic Setup

Each of the projects needs to have the project properties in the web tab synchronised so that they are in agreement with each other. I decided on a port number to use and duplicated that across each of the projects.

Root Project

To start with the root project (that’s the one that appears at the root of the domain) should be set to use IIS Express.

  • In the solution explorer right click the project and then select “Properties” from the menu, alternatively click the project then press Alt+Enter.
  • Once the properties appear go to the “Web” tab and scroll down to the “Server” section.
  • Ensure that “Use Local IIS Web Server” is selected
  • Check “Use IIS Express” if it isn’t already.
  • In the project URL choose a port number that you want to use across each of the projects. (You can leave the default for this project if you wish, but take a note of it for the others)
  • Press “Create Virtual Directory” to set up IIS Express.
Setting up the root application

Setting up the root application

Remember the port number that was used for the root project as it will be needed for the other projects.

Set up the first application

In the first application project put similar details in Project Properties.

The only difference is that the Project URL has a virtual directory added to it.

Setting up the first application

Setting up the first application

Set up the second application

This is similar to the first application, except that the Project URL has a different virtual directory added to it.

Setting up the second application

Setting up the second application

Xander.PasswordValidator – WordListRegExBuilder

When word lists are processed a regular expression is built in order to quickly traverse the lists. The regular expression is built using a number of builders which create various parts of the regular expression. One for checking the password itself, and another for testing the password against the list but modified by adding a numeric suffix. You can add your own by creating your own class derived from WordListRegExBuilder and then adding it to the WordListProcessOptions.

The WordListRegExBuilder is an abstract base class and demands that the GetRegularExpression method is implemented in any concrete derived class. It also has a method called RegExEncode which takes a string and encodes it for use in a regular expression, escaping out all the special symbols used by the regular expression engine.

For example, say you want to validate the password against the list, but check also for a numeric prefix you can create a class to build that part of the regular expression. That class would look something like this:

using Xander.PasswordValidator;
namespace Xander.Demo.PasswordValidator.Web.Mvc3.Helpers
{
  public class NumericPrefixBuilder : WordListRegExBuilder
  {
    public override string GetRegularExpression(string password)
    {
      return "[0-9]" + RegExEncode(password);
    }
  }
}

And to use this in the validator, add it to the settings like this:

var settings = new PasswordValidationSettings();
settings.WordListProcessOptions.CustomBuilders.Add(typeof(NumericPrefixBuilder));

The Validator will create a new instance of your class and run the GetRegularExpression method. It will then incorporate that in to the regular expression that it is building and test word lists using it.

Xander.PasswordValidatator – Validation Handlers

If the password validator does not have the validation rules that you need for your project then it is easily extendable. You can create your own ValidationHander derived classes and set add them via the PasswordValdiationSettings class.

ValidationHandler

The ValidationHandler class is an abstract base class which is extended in the Xander.PasswordValidator framework itself to provide the various built in validation routines. (You can see examples of some of them here on GitHub)

You can create your own by simply creating a class and setting Xander.PasswordValidator.ValidationHandler as the base class and overriding the Validate() method.

The Validate method simply accepts the password as the parameter and returns a Boolean. Return true to indicate that the password passes the validation, false if it fails the validation.

For example, here is a very simple validator that rejects passwords that look like dates:

using System;
using Xander.PasswordValidator;

namespace Demo.ValidationHandlers
{
  public class NoDatesValidationHandler : ValidationHandler
  {
    public override bool Validate(string password)
    {
      DateTime date;
      var parseResult = DateTime.TryParse(password, out date);
      return !parseResult;
    }
  }
}

To set this up so that the validator calls it, it needs to be added as part of the settings. You pass in the type of the handler. The Validation framework will create an instance of the handler for you, if it needs it. If validation fails before it gets a chance to run your validator then your validator will not run.

var settings = new PasswordValidationSettings();
settings.CustomValidators.Add(typeof(NoDatesValidationHandler));

CustomValidationHandler<TData>

This derives from ValidationHandler and is used when you need to pass some additional data or objects into your validation handler for it to work properly.

The Validate method works as before, except you now have access to an additional property from the base class that contains your custom data, called CustomData. CustomData is the object passed in through the settings.

To pass in the data through the settings you use the CustomSettings property on the PasswordValidationSettings class. For example:

settings = new PasswordValidationSettings();
settings.MinimumPasswordLength = 6;
settings.CustomValidators.Add(typeof(PasswordHistoryValidationHandler));
settings.CustomSettings.Add(typeof(PasswordHistoryValidationHandler), new Repository());

The key passed into CustomSettings is a type that refers to the ValidationHandler type that the settings are to be sent to.

The ValidationHandler looks something like this:

using System.Linq;
using System.Web;
using Xander.PasswordValidator;

namespace Demo.ValidationHandlers
{
  public class PasswordHistoryValidationHandler : CustomValidationHandler
  {
    public override bool Validate(string password)
    {
      var user = HttpContext.Current.User;
      var history = CustomData.GetPasswordHistory(user.Identity.Name);
      return !history.Any(h => string.Compare(password, h, true) == 0);
    }
  }
}

In the above example, the settings pass in a repository which is passed on to the ValidationHandler when the Validator is run. The repository is used to get a history of passwords (It is a dummy repository in this example – In real life you should never have access to the plain text passwords like this) and the history can be checked against the current password to ensure that it does not match any of the historical passwords.

There is a slightly updated set of assemblies for this as I made some changes to way the CustomValidationHandler works: PasswordValidator.0.2.0.0.zip

Xander.PasswordValidator – In a Web Application

In the last post I introduced Xander.PasswordValidator and showed the basics of how to configure it. In this post I’m going to show the PasswordValidationAttribute and how you can use it in your ASP.NET MVC application.

PasswordValidation attribute

At its simplest, all you need to do is to decorate a property in your model with the PasswordValidationAttribute, like this:

  public class SomeModel
  {
     [PasswordValidation]
     public string Password { get; set; }







    // Other stuff goes here
  }

That will validate the password based on the settings in the config file, which I discussed briefly in my previous post, and I’ll go into more detail later.

Registering the Password Validator

In order for the file paths to custom word lists to be resolved correctly in a web application you need to register the validator in the Application_Start() method in your web application’s HttpApplication derived class. (Or anywhere before first use).

For example, the Application_Start() method may look like this:

protected void Application_Start()
{
   PasswordValidatorRegistration.Register(); // Register password validator
   AreaRegistration.RegisterAllAreas();
   RegisterGlobalFilters(GlobalFilters.Filters);
   RegisterRoutes(RouteTable.Routes); }

Validating settings from code

As the settings can get quite complex they cannot be set directly in the attribute that you use to decorate the model. Instead they can be set elsewhere and referenced in the attribute.

The settings can be configured as normal then added to the PasswordValidationSettingsCache. For example:

var settings = new PasswordValidationSettings();
settings.NeedsNumber = true;
settings.NeedsSymbol = true;
settings.MinimumPasswordLength = 6;
settings.StandardWordLists.Add(StandardWordList.FemaleNames);
settings.StandardWordLists.Add(StandardWordList.MaleNames);
settings.StandardWordLists.Add(StandardWordList.Surnames);
settings.StandardWordLists.Add(StandardWordList.MostCommon500Passwords);
PasswordValidationSettingsCache.Add("StandardRules", settings);

This code would typically be placed in the Application_Start() method, after registering the password validator.

The important line is the last one. It adds the setting tot he cache with the name “StandardRules”. That can then be references in the attribute later. Like this:

public class MyModel
{
  [PasswordValidation("StandardRules")]
  public string Password { get; set; }
}

The PasswordValidationAttribute references the entry in the cache, which is then retrieved to perform the validation.

Xander.PasswordValidator – A Simple Demonstration

I recently introduced the Xander.PasswordValidator project I’m working on in a previous blog post. In this post I intend to demonstrate some of the basics of how to use it.

Validator

At the most core is the Validator class. It performs the validation of the password and returns a value to the caller to let them know if the validation passed or failed.

The validator can take settings set by the caller, or it can find settings in the application’s configuration file.

Here is a simple example of it working:

var settings = new PasswordValidationSettings();
settings.MinimumPasswordLength = 6;
settings.NeedsLetter = true;
settings.NeedsNumber = true;
settings.StandardWordLists.Add(StandardWordList.MostCommon500Passwords);
var validator = new Validator(settings);
bool result = validator.Validate("MySuperSecretPassword");

First off, a settings class is created, then various options are set. If you don’t set any options then the validator allows any password.

In this example the settings mandate the a password must be at least 6 characters, it must have a letter and it must have a number, and it must not appear in the built in list of the most common 500 passwords.

Then the Validator is created and passed the settings that we’ve prepared.

Finally, the Validate method is called passing in the password that is to be validated. The result indicates whether the password passed or failed (in the example above, it failed as it does not contain a number).

Settings from the config file

If you prefer to have the settings for the validator in the config file then you can instantiate a Validator without passing anything to its constructor and it will use the settings in the config file instead.

It should go without saying that you should only put the settings in the config file in a secure environment.

To use settings in the config file you must set up a the section where the settings will go, and then create the section with the settings in it.

To define the section:

<configSections>
<!-- Set up other config sections here—>
   <sectionGroup name="passwordValidation">
      <section name="rules" type="Xander.PasswordValidator.Config.PasswordValidationSection, Xander.PasswordValidator, Version=0.1.0.0, Culture=neutral, PublicKeyToken=fe72000dffcf195f" allowLocation="true" allowDefinition="Everywhere"/>
   </sectionGroup> </configSections>

An example of the config section itself:

<!-- The configuration section that describes the configuration for the password validation -->
<passwordValidation>
   <rules minimumPasswordLength="6" needsNumber="false" needsLetter="false" needsSymbol="false">
     <wordListProcessOptions checkForNumberSuffix="true" checkForDoubledUpWord="true" checkForReversedWord="true" />
     <standardWordLists>
       <add value="FemaleNames"/>
       <add value="MaleNames"/>
       <add value="MostCommon500Passwords"/>
       <add value="Surnames"/>
     </standardWordLists>
     <customWordLists>
       <add file="WordLists/MyCustomWordList.txt" />
       <add file="WordLists/MyOtherCustomWordList.txt" />
     </customWordLists>
   </rules> </passwordValidation>

The above example uses most options available out of the box that can be put in the config file. It is worth noting that some options are only available from the settings in the code, such as being able to specify custom classes that handle parts of the validation.

Have a play

If you want to try this out for yourself the two assemblies are available here. I will be putting this on NuGet soon.

Checking for NULL using Entity Framework

Here is a curious gotcha using the Entity Framework: If you are filtering on a value that may be null then you may not be getting back the results you expect.

For example, if you do something like this:

var result = context.GarmentsTryOns
    .Where(gto => gto.WeddingId == weddingId
                  && gto.PersonId == personId);

And personId is null then you won’t get any results back. This is because under the hood the query is structured like this:

…WHERE WeddingId = @p0 AND PersonId = @p1

That’s all great when @p1 has a value, but when it is null SQL Sever says nothing matches. In SQL Server, NULL is not a value, it is the absence of a value, it does not equal to anything (including itself) e.g. Try this:

SELECT CASE WHEN NULL = NULL THEN 1 ELSE 0 END

That returns 0!

Anyway, if you want to test NULL-ability, you need the IS operator, e.g.

SELECT CASE WHEN NULL IS NULL THEN 1 ELSE 0 END

That returns 1, which is what you’d expect.

Now, for whatever reason, EF is not clever enough to realise that in the above example, personId is (perfectly validly) null in some cases and switch from using = to IS as needed. So, what we need is a little jiggery-pokery to get this to work. EF can tell if you hard code the null, so you can do this in advance to set things up:

Expression<Func<GarmentTryOns, bool>> personExpression;
if (personId == null)
    personExpression = gto => gto.PersonId == null;
else
    personExpression = gto => gto.PersonId == personId;

This can then be injected as a Where filter onto the query and it EF will interpret it correctly. Like this:

var result = context.GarmentTryOns
                      .Where(gto => gto.WeddingId == weddingId)
                      .Where(personExpression);

The SQL that EF produces now correctly uses PersonId IS NULL when appropriate.

Handling bounces on Amazon SES

If you send to an email that does not exist, Amazon SES will perform some handling of the bounce before passing the details on to you.

When you send email through Amazon SES you may notice that the email arrives with a Return Path that looks something like this: 00000331b8b1d648-b8302192-701f-124d-a1d5-d268912677de-135246@email-bounces.amazonses.com

As it happens, the large delimited hex number before the @ sign is the same value that you got back from the SendEmail or SendRawMail response. (If you’re unfamiliar with sending an email see previous posts on SendEmail and SendRawEmail.)

// client is a AmazonSimpleEmailServiceClient
// request is a SendEmailRequest
SendEmailResponse response = client.SendEmail(request);
string messageId = response.SendEmailResult.MessageId;

When the email bounces, it will go first to Amazon SES where they will note which email bounced. Then the email will be forwarded on to you and you will receive the bounced email. (Be aware, tho’, that the email may end up in your spam folder – they did for me). Exactly where the bounce email will go depends on the API call you are using and the fields that you have populated in the outgoing email. The rules are detailed on the Bounce and Complaints notifications page of the Amazon SES Developer’s Guide.

If you look in the headers of this email you’ll see that Message Id again in various parts of the header. e.g.

X-Original-To: 00000331b8b1d648-b8302192-701f-124d-a1d5-d268912677de-135246@email-bounces.amazonses.com
Delivered-To: 00000331b8b1d648-b8302192-701f-124d-a1d5-d268912677de-135246@email-bounces.amazonses.com
Message-Id: <00000331b8b1d648-b8302192-701f-124d-a1d5-d268912677de-135246@email.amazonses.com>

How you process these bounces on your side is up to you. Amazon do not, yet (I’m hopeful they will and it has been requested a lot) provide an automated way of using the API for querying which emails are bouncing, are complained about or are rejected.

At present the best detail you are going to get on bounced emails is in the aggregate data provided through the GetSendStatistics API call or via the graphs on the AWS Console.

What happens if I send more email to an address that bounced?

If you continue to send emails to an address that bounces you will get a MessageRejectedException when you call SendEmail or SendRawEmail with the message “Address blacklisted.”

Conclusion on bounce handling

At present bounce handling using Amazon SES isn’t great (but it’s certainly no better than using a plain old SMTP service) however Amazon do appear to be interested in providing better support for handling bounces and the like. It may very well be better supported in the future.

Verifying Senders with Amazon SES

I’ve already written a couple of pieces about Amazon Simple Email Service (SES) on sending Email and sending emails with attachments.

Why do you have to verify senders?

It is important to note that while in development mode you have to verify all recipients and senders, in production mode you still have to verify the senders (this is, presumably, an anti-spam measure to ensure the high quality of email).

If you attempt to send an email from an email address that is not registered you will get a MessageRejectedException when you call SendEmail or SendRawEmail with the message “Email address is not verified”.

Listing and verifying senders

You can add and view senders in via AWS Console which is fine if all you need is to add the odd sender now and again. However, if your application is going to send on behalf of a number of people then you need a way to automate this.

The AWS API contains three methods that help with managing verified email addresses. You can VerifyEmailAddress, DeleteVerifiedEmailAddress and ListVerifiedEmailAddresses.

To Verify an email address

Here is the code to verify an email address

var config = new AmazonSimpleEmailServiceConfig();
var client = new AmazonSimpleEmailServiceClient(config);
VerifyEmailAddressRequest request = new VerifyEmailAddressRequest();
request.EmailAddress = "joe.bloggs@example.com";
var response = client.VerifyEmailAddress(request);

The an email will be sent to the email address listed

from        no-reply-aws@amazonaws.com via email-bounces.amazonses.com
to:         joe.bloggs@example.com
date:       13 November 2011 15:08
subject:    Amazon SES Address Verification Request
mailed-by:  email-bounces.amazonses.com

Dear Amazon SES customer:

We have received a request to authorize an email address for use with Amazon
SES.  To confirm that you are authorized to use this email address, please go
to the following URL:

https://email-verification.us-east-1.amazonaws.com/...........

Your request will not be processed unless you confirm the address using this
URL.

To learn more about sending email from Amazon SES, please refer to the Amazon
SES Developer Guide.

Sincerely, Amazon Web Services

Once you’ve clicked the link you’ll get a page with a message like this:

Congratulations!

You have successfully verified an email address with Amazon Simple Email Service. You can now begin sending email from this address.

If you are a new Amazon SES user and have not yet received production access to Amazon SES, then you can only send email to addresses that you have previously verified. To view your list of verified email addresses, go to the AWS Management Console or refer to the Amazon SES Developer Guide.

If you have already been approved for production access, then you can send email to any address.

Thank you for using Amazon SES.

Once this message has been displayed the email addresses will be displayed in the SES Console and you will be able to send email from this email address (in development mode it also means you will be able to send email to the address)

Listing the verified email addresses

In order to check the email addresses that have passed through the verification process you can use the method ListVerifiedEmailAddresses.

var config = new AmazonSimpleEmailServiceConfig();
var client = new AmazonSimpleEmailServiceClien(config);
var request = new ListVerifiedEmailAddressesRequest();
var response = client.ListVerifiedEmailAddresses(request);
var result = response.ListVerifiedEmailAddressesResult;
List<string> addresses = result.VerifiedEmailAddresses;

The addresses that have been successfully verified will be listed in the addresses list.

If the email goes out (from VerifyEmailAddress or from the AWS Console), and it the address is not yet verified then it won’t appear in the list.

Removing a verified email address

If you no longer need to send from an email address you can use the DeleteVerifiedEmailAddress method.

var config = new AmazonSimpleEmailServiceConfig();
var client = new AmazonSimpleEmailServiceClient(config);
var request = new DeleteVerifiedEmailAddressRequest();
request.EmailAddress = viewModel.NewEmailAddress;
var response = client.DeleteVerifiedEmailAddress(request);

Sending more than a basic email with Amazon SES

Previously, I wrote about getting started with Amazon’s Simple Email Service, and I included details of how to send a basic email. The SendEmail method is excellent at sending basic emails with HTML or Text bodies. However, it doesn’t handle attachments. For that, you need to use SendRawEmail.

SendRawEmail doesn’t give you much functionality. In fact, you have to do all the work to construct the email yourself. However, it does mean that you can do pretty much what you need with the email.

There are still some limitations. Amazon imposes a 50 recipient limit per email, a maximum 10Mb per email, and you can only add a small number of file types as an attachment. This is, I suspect, in order to reduce the ability for people to use the service to spam and infect other people while permitting most of all legitimate uses for the service.

Building an email

When I said that you have to do all the work to construct the email, I really did mean that. You have to figure out the headers, the way the multi-part MIME is put together the character encoding (because email is always sent using a 7-bit encoding) and so on.

I tried to do this, and it it was most frustrating work. The tiniest thing seemed to put Amazon SES into a sulk.

However, I did find a piece of code that someone else had written to do the heavy work for me. Essentially, what he’s doing is constructing a mail message using the built in System.Net.Mail.MailMessage type in .NET and then using .NET’s own classes to create the raw mail message as a MemoryStream, which is what Amazon SES wants.

I’ve refactored the code in the linked post so that it is slightly more efficient if you are calling it multiple times. It uses reflection, and some of the operations need only be carried out once regardless of the number of times you generate emails, so it removes those bits off to a static initialiser so that they only happen the once.

Here’s my refactored version of the code:

public class BuildRawMailHelper
{
    private const BindingFlags nonPublicInstance =
        BindingFlags.Instance | BindingFlags.NonPublic;

    private static readonly ConstructorInfo _mailWriterContructor;
    private static readonly MethodInfo _sendMethod;
    private static readonly MethodInfo _closeMethod;

    static BuildRawMailHelper()
    {
        Assembly systemAssembly = typeof(SmtpClient).Assembly;
        Type mailWriterType = systemAssembly
            .GetType("System.Net.Mail.MailWriter");

        _mailWriterContructor = mailWriterType
            .GetConstructor(nonPublicInstance, null,
                new[] { typeof(Stream) }, null);

        _sendMethod = typeof(MailMessage).GetMethod("Send",
            nonPublicInstance);

        _closeMethod = mailWriterType.GetMethod("Close",
            nonPublicInstance);
    }

    public static MemoryStream ConvertMailMessageToMemoryStream(
        MailMessage message)
    {
        using (MemoryStream memoryStream = new MemoryStream())
        {
            object mailWriter = _mailWriterContructor.Invoke(
                new object[] {memoryStream});

            _sendMethod.Invoke(message, nonPublicInstance, null,
                                new[] {mailWriter, true}, null);

            _closeMethod.Invoke(mailWriter, nonPublicInstance,
                null, new object[] {}, null);

            return memoryStream;
        }
    }
}

At first glance, the fact that the MemoryStream is disposed of does seem a bit counter-intuitive, however some methods of MemoryStream still function when the stream is closed, such as ToArray().

Incidentally, if you want to see what the raw email looks like you can use a piece of code like this to get the raw email as a string:

MemoryStream memoryStream =
    BuildRawMailHelper.ConvertMailMessageToMemoryStream(mailMessage);
byte[] data = rawMessage.Data.ToArray();
using (StreamReader reader = new StreamReader(new MemoryStream(data)))
{
    string rawMail = reader.ReadToEnd();
    Console.Write(rawEmail);
}

Using SendRawEmail

Because you’re doing all the work, the code that actually interacts with Amazon SES is very simple.

// mailMessage is an instance of a System.Net.Mail.MailMessage
var config = new AmazonSimpleEmailServiceConfig();
var client = new AmazonSimpleEmailServiceClient(config);
SendRawEmailRequest request = new SendRawEmailRequest();
request.RawMessage = new RawMessage();
request.RawMessage.Data = BuildRawMailHelper
    .ConvertMailMessageToMemoryStream(mailMessage);
var response = client.SendRawEmail(request);

And that’s it. You can now send emails with attachments, and anything else you can do with a MailMessage.

Follow

Get every new post delivered to your Inbox.
