Running an ASP.NET MVC application on a fresh IIS8 install

IIS has ever increasing amounts of security, you can’t publish a basic ASP.NET MVC website anymore and expect IIS to host it without some additional work. The default config settings that the MVC uses are locked down in IIS, so it issues an error when you try to navigate to your fresh site.

Initially you may get a screen that says something bland and non-descriptive, like “Internal Server Error” with no further information.

To get the more detailed error messages modify your web application’s web.config file and add the following line to the system.webServer section:

<httpErrors errorMode="Detailed" />

Now, you’ll get a more detailed error message. It will look something like this:

The key to the message is: This configuration section cannot be used at this path. This happens when the section is locked at a parent level. Locking is either by default (overrideModeDefault="Deny"), or set explicitly by a location tag with overrideMode="Deny" or the legacy allowOverride="false".

The “Config Source” section of the error message will highlight in red the part that is denied.

In order to allow the web.config to modify the the identified configuration element you need to find and modify the ApplicationHost.config file. It is located in C:\Windows\System32\inetsrv\config. You’ll need to be running as an Administrator level user in order to modify the file.

Find the section group the setting belongs to, e.g.

<sectionGroup name="system.webServer">

Then the section itself:

<section name="handlers" overrideModeDefault="Deny" />

And update overrideModeDefault to "Allow" in order to allow the web.config to override it.

When you refresh the page for the website the error will be gone (or replaced with an error for the next section that you are not permitted to override)

Authenticating Across Virtual Directories

If you have an application set up in a way similar to the previous post, which is essentially a domain that contains a number of web application hosted in various virtual directories on the server.

In my previous example, the root of the domain contains the application that contains the account management (the sign in, password retrieval, account set up, etc.), however each of the applications in each virtual directory must know who is logged in.

Assuming you are using the .NET’s built in authentication mechanisms this is unlikely to work out of the box. There is some configuration that need to happen to allow each of the applications to sync up.

Setting up the web.config file

In MVC 4 Forms Authentication must be set up explicitly.

<system.web>
  <authentication mode="Forms">
  </authentication>
  <!-- Other config settings -->
</system.web>

To ensure that each application can decrypt the authentication ticket in the cookie, they all must share the same machine key as by default IIS will assign each application its own encryption and decryption keys for security.

<system.web>
  <machineKey decryptionKey="10FE3824EFDA35A7EE5E759651D2790747CEB6692467A57D" validationKey="E262707B8742B1772595A963EDF00BB0E32A7FACA7835EBE983A275A5307DEDBBB759B8B3D45CA44DA948A51E68B99195F9405780F8D80EE9C6AB46B9FEAB876" />
  <!-- Other config settings -->
</system.web>

Do not use the above key – it is only an example.

These two settings must be shared across each of the applications sitting in the one domain.

Generating a Machine Key

To generate a machine key:

  • Open “Internet Information Services (IIS) Manager” on your development machine.
  • Set up a dummy application so that it won’t affect anything else on the machine.
  • Open up the Machine Key feature in the ASP.NET section

    IIS Manager

    IIS Manager

  • (1) In the “Validation key” section uncheck “Automatically generate at runtime” and “Generate a unique key for each application”.

    Machine Key Configuration in the IIS Manager

    Machine Key Configuration in the IIS Manager

  • (2) In the “Decryption key” section uncheck “Automatically generate at runtime” and “Generate a unique key for each application”.
  • (3) Click “Generate Keys” (this will change the keys randomly each time it is pressed)
  • (4) Click “Apply”

The web.config for this web application will now contain the newly generated machine key in the system.web section. Copy the complete machineKey element to the applications that are linked together.

There is an “Explore” link on the site’s main page in IIS to open up Windows Exporer on the folder which contains the web site and the web.config file.

RavenDB on IIS: Cannot access file, the file is locked or in use

I came across another issue with trying to get RavenDB working through IIS. When the process started up I got the error message “Cannot access file, the file is locked or in use”.

The stack trace looked like this:

[EsentFileAccessDeniedException: Cannot access file, the file is locked or in use]
   Microsoft.Isam.Esent.Interop.Api.Check(Int32 err) in C:\Work\ravendb\SharedLibs\Sources\managedesent-61618\EsentInterop\Api.cs:2736
   Raven.Storage.Esent.TransactionalStorage.Initialize(IUuidGenerator uuidGenerator) in c:\Builds\RavenDB-Stable\Raven.Storage.Esent\TransactionalStorage.cs:205

[InvalidOperationException: Could not open transactional storage: C:\inetpub\ravendb\Data\Data]
   Raven.Storage.Esent.TransactionalStorage.Initialize(IUuidGenerator uuidGenerator) in c:\Builds\RavenDB-Stable\Raven.Storage.Esent\TransactionalStorage.cs:220
   Raven.Database.DocumentDatabase..ctor(InMemoryRavenConfiguration configuration) in c:\Builds\RavenDB-Stable\Raven.Database\DocumentDatabase.cs:185
   Raven.Web.ForwardToRavenRespondersFactory.Init() in c:\Builds\RavenDB-Stable\Raven.Web\ForwardToRavenRespondersFactory.cs:84
   Raven.Web.RavenDbStartupAndShutdownModule.b__0(Object sender, EventArgs args) in c:\Builds\RavenDB-Stable\Raven.Web\BootStrapper.cs:13
   System.Web.SyncEventExecutionStep.System.Web.HttpApplication.IExecutionStep.Execute() +80
   System.Web.HttpApplication.ExecuteStep(IExecutionStep step, Boolean& completedSynchronously) +270M

It turns out that I hadn’t given the account IIS was using access to the directory… Or rather, I had given access, I just didn’t tell IIS about the account so it was using the default account.

To fix the issue:

  • Go into the Application Pools section of IIS.
  • Click the Application pool used by the RavenDB site

  • Press “Advanced Settings…” on the right side of the dialog.
  • Ensure the correct account is set up for the “Identity” in the “Process Model” section.

  • Once you’ve set up the correct user, press "OK" for each of the dialogs and everything should be ready.

Getting RavenDB working on IIS – 500.19

While trying to get RavenDB working in IIS I ran into a problem. I got the following error from IIS

HTTP Error 500.19 – Internal Server Error

The requested page cannot be accessed because the related configuration data for the page is invalid.

Module IIS Web Core
Notification BeginRequest
Handler Not yet determined
Error Code 0×80070021
Config Error This configuration section cannot be used at this path. This happens when the section is locked at a parent level. Locking is either by default (overrideModeDefault="Deny"), or set explicitly by a location tag with overrideMode="Deny" or the legacy allowOverride="false".
Config File \\?\C:\inetpub\ravendb\web.config

Config Source

    6: 	<system.webServer>
    7: 		<handlers>
    8: 			<add name="All" path="*" verb="*" type="Raven.Web.ForwardToRavenRespondersFactory, Raven.Web"/>

I’ve ignored some of the less interesting parts of the error message.

This can be fixed in IIS itself.

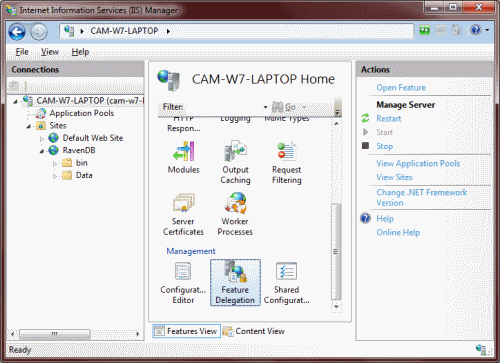

  • Open up IIS, click on the top node of the tree on the left side (the one labelled with the machine name)
  • Then double-click on the item in the centre pane marked “Feature Delegation”

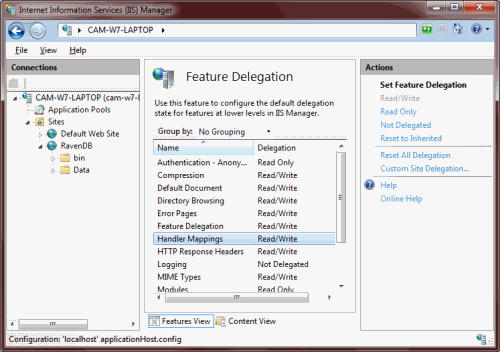

  • Then find the entry marked “Handler Mappings” and set the delegation to “Read/Write” using the action links on the right side of the dialog.

When this is done the error moves on to the next part of the web.config

Config Source

    9: 		</handlers>
   10: 		<modules runAllManagedModulesForAllRequests="true">
   11: 			<remove name="WebDAVModule" />

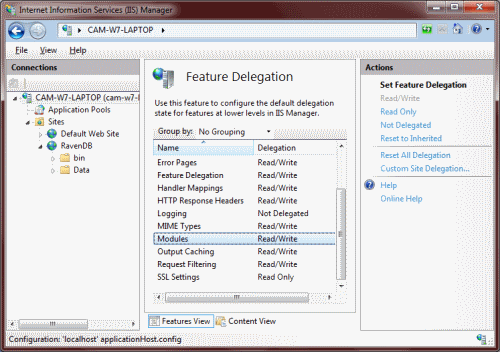

At this point you have to also set the “Modules” to “Read/Write” also

Once that was set, I was good to go.

Installing a web site on a new server

Here are some blog posts that have been useful to me lately when I got caught out installing a website on a new server (I will eventually get that automated build and deploy process actually performing the deploy step successfully!!)

The configuration section ‘system.web.extensions’ cannot be read because it is missing a section declaration:

While installing a website on a new Windows Server I came across this error. In short, it was because the App Pool was set up as a .NET 2.0 application rather than a 4.0. The blog post explains what was going on and how to fix it.

[Resolved] Could not load file or assembly ‘XXXXX’ or one of its dependencies. An attempt was made to load a program with an incorrect format:

Although this didn’t help me in the end, it does suggest a solution. In my case, because of a third-party dependency that requires an x86 build, it couldn’t be used. In time that dependency will be removed, in the meantime the following was more helpful to me…

Could not load file or assembly ‘PresentationCore’ or one of its dependencies. An attempt was made to load a program with an incorrect format. : A solution:

This post did give me the pointer I needed to the setting that had to be changed to get the web site working.

Tip of the Day #23: Getting going with IIS Express

First, if you don’t have it already you need to download IIS Express (you can also use this link to get the full install, not via Microsoft’s web installer, if you are behind a proxy that is preventing the installation). And, I’d also recommend downloading Visual Studio 2010 SP1 and upgrading to it.

In your web project, open up the properties by right clicking the project and selecting properties, or pressing Alt+Enter while the project is selected.

You will then be presented with a view like this:

1 Initial Web Properties

By default, in the servers section of the Web tab the “Use Visual Studio Development Server” (aka Cassini) will be selected. Change this to “Use Local IIS Web Server”

2 Change to Local IIS Web Server

If you want to customise the settings you may do so. I tend to set a specific local port so that I know that all my applications don’t class with one another and that I can easily identify it later. My naming scheme to select 4 or 5 digits that are derived from the name of the project as if dialled into a telephone keypad. (Some people think that’s a bit weird but it makes it easy to avoid port clashes and to reverse the port into the project if you ever get lost.)

If necessary you can define the virtual directory in the Project URL and configure it by pressing “Create Virtual Directory”.

3 Setting a Virtual Directory

If you don’t “Create Virtual Directory” and you attempt to run the project, you’ll get a warning dialog that asks if you want to configure it. If you select yes, then Visual Studio will configure the virtual directory for you and start the application.

4 Not configuring a Virtual Directory

Finally, if you need to see what Sites IIS Express is running there is a tray icon you can right click on to see.

5 System Tray Icon for IIS Express

And if you click “Show all applications” you get to see all the sites that IIS Express is running. Clicking on a URL takes you to that site, anywhere else on the line will bring up details of the site in the lower part of the dialog.

6 IIS Express Running Applications

Clicking on the “Parent” name will take you to the instance of Visual Studio that the application is running from. This is a really nifty feature to get you back to the correct instance of Visual Studio if you are running many of them at once.

Clicking on the “Path” will open up Windows Explorer to show you the folder in which the site is located. And clicking “Config” will open the config file in Visual Studio.

32bit ASP.NET App on 64bit Windows 7

Recently we all moved to Windows 7 (64bit) on our development machines. With that, we moved also to IIS7.
So that meant that development copies of websites that we are working on have to
be moved to IIS7. This should be simple. Right?

When I attempted to get the first site up and running I got hit by the error “Could not load file or assembly ‘System.Web’ or one of its dependencies. An attempt was made to load a program with an incorrect format.“.
(The full error message is below.)
After searching around I eventually managed to piece together that the reason
was that IIS was trying to run in 64 bit mode and this application was compiled
as a 32 bit application. Okay…. So how do you fix this?

It turns out the fix is rather easy. In the IIS Manager, open up the list of
Application Pools and select the pool for your application. Right-click and
select “Advanced Settings”. From that point you get this dialog:

32-bit application

Just set “Enable 32-bit applications” to “True”, then Okay the dialog. You then
have to recycle the Application Pool for the change to take effect.






Server Error in ‘/’ Application.

Could not load file or assembly ‘System.Web’ or one of its dependencies. An attempt was made to load a program with an incorrect format.

Description: An unhandled exception occurred during the execution of the current web request. Please review the stack trace for more information about the error and where it originated in the code.

Exception Details: System.BadImageFormatException: Could not load file or assembly ‘System.Web’ or one of its dependencies. An attempt was made to load a program with an incorrect format.

Source Error:

An unhandled exception was generated during the execution of the current web request. Information regarding the origin and location of the exception can be identified using the exception stack trace below.

Assembly Load Trace: The following information can be helpful to determine why the assembly ‘System.Web’ could not be loaded.


WRN: Assembly binding logging is turned OFF.
To enable assembly bind failure logging, set the registry value [HKLMSoftwareMicrosoftFusion!EnableLog] (DWORD) to 1.
Note: There is some performance penalty associated with assembly bind failure logging.
To turn this feature off, remove the registry value [HKLMSoftwareMicrosoftFusion!EnableLog].

Stack Trace:


[BadImageFormatException: Could not load file or assembly 'System.Web' or one of its dependencies. An attempt was made to load a program with an incorrect format.]
   System.Reflection.Assembly._nLoad(AssemblyName fileName, String codeBase, Evidence assemblySecurity, Assembly locationHint, StackCrawlMark& stackMark, Boolean throwOnFileNotFound, Boolean forIntrospection) +0
   System.Reflection.Assembly.InternalLoad(AssemblyName assemblyRef, Evidence assemblySecurity, StackCrawlMark& stackMark, Boolean forIntrospection) +416
   System.Reflection.Assembly.InternalLoad(String assemblyString, Evidence assemblySecurity, StackCrawlMark& stackMark, Boolean forIntrospection) +166
   System.Reflection.Assembly.Load(String assemblyString) +35
   System.Web.Configuration.CompilationSection.LoadAssemblyHelper(String assemblyName, Boolean starDirective) +190

[ConfigurationErrorsException: Could not load file or assembly 'System.Web' or one of its dependencies. An attempt was made to load a program with an incorrect format.]
   System.Web.Configuration.CompilationSection.LoadAssemblyHelper(String assemblyName, Boolean starDirective) +11207304
   System.Web.Configuration.CompilationSection.LoadAllAssembliesFromAppDomainBinDirectory() +388
   System.Web.Configuration.CompilationSection.LoadAssembly(AssemblyInfo ai) +232
   System.Web.Configuration.AssemblyInfo.get_AssemblyInternal() +48
   System.Web.Compilation.BuildManager.GetReferencedAssemblies(CompilationSection compConfig) +210
   System.Web.Compilation.BuildProvidersCompiler..ctor(VirtualPath configPath, Boolean supportLocalization, String outputAssemblyName) +76
   System.Web.Compilation.CodeDirectoryCompiler.GetCodeDirectoryAssembly(VirtualPath virtualDir, CodeDirectoryType dirType, String assemblyName, StringSet excludedSubdirectories, Boolean isDirectoryAllowed) +11196482
   System.Web.Compilation.BuildManager.CompileCodeDirectory(VirtualPath virtualDir, CodeDirectoryType dirType, String assemblyName, StringSet excludedSubdirectories) +185
   System.Web.Compilation.BuildManager.EnsureTopLevelFilesCompiled() +551

[HttpException (0x80004005): Could not load file or assembly 'System.Web' or one of its dependencies. An attempt was made to load a program with an incorrect format.]
   System.Web.Compilation.BuildManager.ReportTopLevelCompilationException() +76
   System.Web.Compilation.BuildManager.EnsureTopLevelFilesCompiled() +1012
   System.Web.Hosting.HostingEnvironment.Initialize(ApplicationManager appManager, IApplicationHost appHost, IConfigMapPathFactory configMapPathFactory, HostingEnvironmentParameters hostingParameters) +1025

[HttpException (0x80004005): Could not load file or assembly 'System.Web' or one of its dependencies. An attempt was made to load a program with an incorrect format.]
   System.Web.HttpRuntime.FirstRequestInit(HttpContext context) +11301302
   System.Web.HttpRuntime.EnsureFirstRequestInit(HttpContext context) +88
   System.Web.HttpRuntime.ProcessRequestInternal(HttpWorkerRequest wr) +11174792


Version Information: Microsoft .NET Framework Version:2.0.50727.4927; ASP.NET Version:2.0.50727.4927

Tip of the Day #14: A Step to PCI Compliance

If you have a public facing website that accepts credit card payments from customers they you?ll be looking to become PCI compliant. This means you need to improve the security of your website to prevent attack and to prevent data being intercepted by third parties.

SSL 2.0 is now seen as weak and insecure, yet IIS will by default accept connections from older browsers that want to use this. It can be turned off, but it isn?t obvious how to do that. Here?s how to turn off SSL 2.0 on IIS or Microsoft Support has a reference on How to disable PCT 1.0, SSL 2.0, SSL 3.0 or TLS 1.0 in IIS (Internet Information Services).

While many PCI auditing companies will tell you if you are using SSL 2.0 or any other weak techniques, the quick test to ensure the server is not serving pages using SSL 2.0 is to change the Advanced Options in Internet Explorer to only support SSL 2.0.

Internet Options 1 (SSL)

After that I went to a secure page in the site and got the following error message:

Internet Explorer cannot display the webpage

Most likely causes:
  • You are not connected to the Internet.
  • The website is encountering problems.
  • There might be a typing error in the address.

What you can try:

Diagnose Connection Problems
More information

This problem can be caused by a variety of issues, including:

  • Internet connectivity has been lost.
  • The website is temporarily unavailable.
  • The Domain Name Server (DNS) is not reachable.
  • The Domain Name Server (DNS) does not have a listing for the website’s domain.
  • If this is an HTTPS (secure) address, click Tools, click Internet Options, click Advanced, and check to be sure the SSL and TLS protocols are enabled under the security section.

For offline users

You can still view subscribed feeds and some recently viewed webpages.
To view subscribed feeds

  1. Click the Favorites Center button , click Feeds, and then click the feed you want to view.

To view recently visited webpages (might not work on all pages)

  1. Click Tools , and then click Work Offline.
  2. Click the Favorites Center button , click History, and then click the page you want to view.

To ensure the site was working normally, I reset the settings to allow only support SSL 3.0 and TLS 1.0 and tried again.

Internet Options 2 (SSL)

This time I got the page I was expecting.

Note: You cannot use FireFox to perform this quick test as it does not support SSL 2.0.

Internet Options 3 (SSL/FF)

Tip of the day #10 (XP Pro IIS Admin)

If you are in the same situation as me where you have to develop web applications on Windows XP and have many projects on the go and for what ever reason cannot just stick each into its own virtual directory then XP Pro IIS Admin is the tool that you need.

What it does is allow you to create multiple web sites in Windows XP (as it only permits one web site) and gives you a little interface for easily switching between them. This makes it much easier to work on multiple projects, especially when the projects expect to be sitting at the top of a website, rather than stuck away in some virtual directory somewhere.

Follow

Get every new post delivered to your Inbox.
